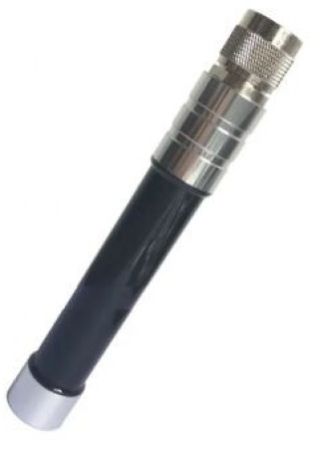

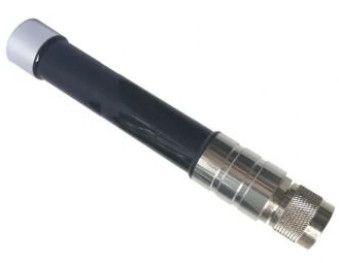

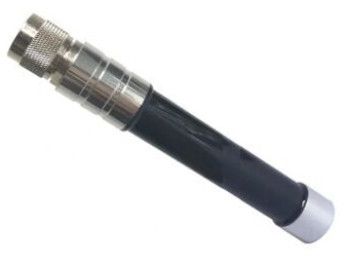

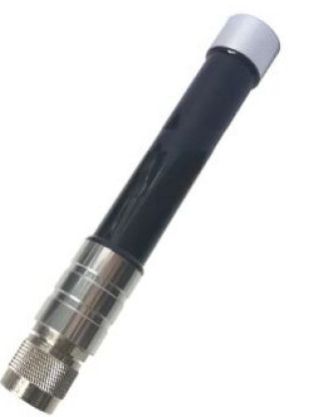

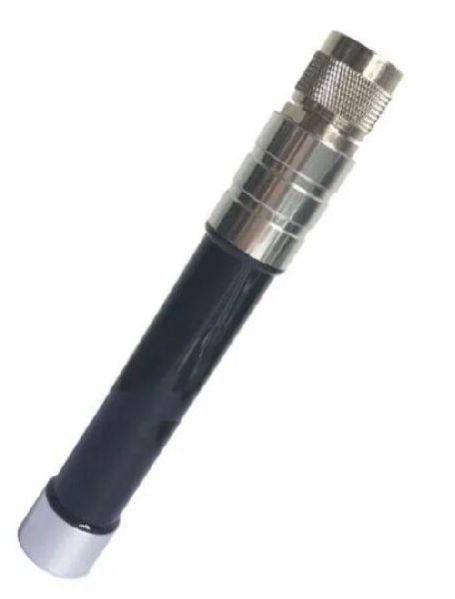

3G Outdoor Antenna

The 3G 10dBi Outdoor Fiberglass Antenna with an N Male Straight Connector is a specific type of antenna designed to enhance 3G signal reception and transmission. Here's a breakdown of the key components and their functions:

Components

1. 3G 10dBi Outdoor Fiberglass Antenna:

   • 3G: Indicates that the antenna is designed for use with 3G mobile networks.
   • 10dBi Gain: This specifies the antenna’s gain, which is a measure of its ability to focus energy in a particular direction. A gain of 10dBi means the antenna provides a moderate level of signal boost and can improve signal strength over a longer distance compared to antennas with lower gain.
   • Outdoor: This suggests that the antenna is built to withstand outdoor conditions and is suitable for use outside your building, often with weather-resistant features.
   • Fiberglass: This material is used for the antenna's housing, making it durable and resistant to environmental conditions such as UV rays and moisture.

2. N Male Straight Connector:

   • N Male: Refers to the type of connector used on the antenna. The "N" connector is a standard RF connector known for its durability and ability to handle high-frequency signals.
   • Straight (St.): Indicates that the connector is straight, as opposed to angled, which can affect how the antenna is positioned and connected to other equipment.

Uses and Benefits

• Outdoor Use: The fiberglass construction and weather-resistant design make it suitable for installation in outdoor environments where it can be exposed to various weather conditions.
• 10dBi Gain: Provides a boost in signal strength, making it ideal for areas where the signal is weak or where you need to extend the coverage range of your 3G network.
• Durability: The fiberglass construction ensures that the antenna can withstand harsh environmental conditions, such as rain, wind, and extreme temperatures.

Installation Tips

• Mounting: Ensure the antenna is mounted securely in a location where it has a clear line of sight to the signal source (e.g., a cell tower). Avoid obstructions that might block or weaken the signal.
• Orientation: The antenna should be oriented correctly to maximize signal reception. This often means aiming it towards the direction of the nearest cell tower.
• Connector: Make sure the N Male connector is properly attached to the coaxial cable and that all connections are tight and secure to avoid signal loss.

This type of antenna is well-suited for boosting 3G signal strength and improving connectivity in challenging signal areas, especially in outdoor settings.

A 3G 15dBi Yagi antenna is designed to enhance the reception and transmission of 3G cellular signals. Yagi antennas are known for their high gain and directivity, making them ideal for boosting signal strength in areas with weak coverage. Here’s a detailed overview of this type of antenna:

Key Features

1. Frequency Range:

   • 3G Bands: Typically operates in the frequency range used by 3G networks, which varies by region. In most cases, this includes bands like 850 MHz, 900 MHz, 1700 MHz, 1900 MHz, or 2100 MHz. Ensure the antenna is compatible with the specific frequencies used by your 3G network.

2. Gain:

   • 15 dBi Gain: This indicates a high level of signal amplification. The 15 dBi gain provides a significant increase in signal strength compared to lower-gain antennas. This high gain is achieved through the antenna’s design, which focuses the signal in a specific direction.

3. Design:

   • Yagi Design:
     • Elements: The Yagi antenna consists of multiple elements, including a driven element, reflectors, and directors. This design focuses the signal in a particular direction, which helps in receiving signals from or sending signals to a specific base station or cell tower.
     • Directivity: The antenna has a directional radiation pattern, meaning it needs to be oriented correctly toward the signal source for optimal performance.
     • Construction: Typically made from metal elements mounted on a boom. It is designed to be mounted outdoors for the best performance.

Advantages

• High Gain: The 15 dBi gain significantly amplifies weak signals, improving both reception and transmission quality. This is especially useful in areas with poor signal coverage.

• Directional Focus: The Yagi design allows for focusing on signals from a specific direction, which can be useful for long-distance communication or improving connectivity with a particular cell tower.

• Improved Signal Quality: Enhanced signal strength and quality can lead to better data speeds and more reliable connections.

Typical Applications

• Home and Office: Used in areas with weak 3G signal coverage to improve reception and connectivity. Often installed on rooftops or external walls facing the signal source.

• Rural Areas: Helps in boosting the 3G signal in remote or rural locations where cellular coverage may be sparse.

• Mobile Networks: Useful for improving signal reception for mobile network base stations or for use in mobile network testing.

Considerations

• Alignment: Proper alignment is crucial for maximizing the antenna's performance. The antenna should be pointed toward the nearest cell tower or signal source.

• Installation: Typically mounted outdoors and may require a mast or mounting bracket for proper installation. Ensure the installation complies with local regulations and guidelines.

• Frequency Compatibility: Verify that the antenna supports the specific frequency bands used by your 3G network.

Enhance your 3G signal with this efficient 16dBi Yagi Antenna, specifically engineered for extended signal reach. Ideal for improving cellular coverage, this directional antenna provides superior reception and more robust connectivity for your mobile hotspot, router, or signal booster.

Yagi antenna setup. Here's a breakdown of the components you've listed:

1. 3G 16dBi Yagi Antenna: This is a directional antenna designed for 3G mobile networks. The "16dBi" refers to the antenna's gain, which indicates how well it focuses energy in a particular direction compared to an isotropic radiator. A higher dBi means the antenna can transmit or receive signals from a greater distance in the direction it’s pointed.

2. RG58 (L-3Mtr) Cable: This is a type of coaxial cable used for transmitting radio signals. The "L-3Mtr" indicates that the cable is 3 meters long. RG58 cables are commonly used for radio communications and have a 50-ohm impedance.

3. SMA (M) St. Connector: This is a type of connector used to connect the coaxial cable to the antenna or other equipment. "SMA (M)" stands for SMA Male connector, which is a common connector type for RF applications.

Overall, this setup is designed to improve signal reception or transmission for 3G networks by providing a higher gain and a directional signal path. It’s useful for extending the range of your 3G signal, especially in areas with weak coverage. If you’re installing it, make sure to aim the Yagi antenna in the direction of the nearest cell tower for optimal performance.

A 3G 18dBi Yagi antenna is a high-gain directional antenna specifically designed to improve 3G cellular signal reception and transmission. Here’s a comprehensive overview of its features and applications:

Key Features

1. Frequency Range:

   • 3G Bands: The antenna is typically designed to operate within the frequency bands used for 3G networks. These bands can include frequencies such as 850 MHz, 900 MHz, 1700 MHz, 1900 MHz, or 2100 MHz, depending on your region and network requirements. Ensure the antenna matches the frequency band of your specific 3G network.

2. Gain:

   • 18 dBi Gain: This high gain indicates a strong ability to amplify signals. The 18 dBi gain provides significant signal enhancement compared to lower-gain antennas. This is achieved through the Yagi design’s focused directional radiation pattern.

3. Design:

   • Yagi Configuration:
     • Elements: The Yagi antenna consists of several elements including a driven element, reflectors, and directors. This arrangement helps in concentrating the signal in a specific direction.
     • Directivity: The antenna has a highly directional pattern, which means it needs to be accurately aimed towards the signal source (e.g., a cell tower) to achieve optimal performance.
     • Construction: Generally made from metal elements and mounted on a boom, which is designed for outdoor use.

Advantages

• High Signal Gain: The 18 dBi gain offers a substantial increase in signal strength, which is particularly beneficial in areas with weak or spotty 3G coverage. It can improve both reception and transmission quality.

• Directional Focus: The Yagi design’s directional nature allows for focused signal reception or transmission, which can enhance connectivity with a specific cell tower or base station.

• Improved Data Speeds: By boosting the signal strength, the antenna can lead to better data speeds and more reliable connections, especially in remote or rural areas.

Typical Applications

• Residential and Office Use: Ideal for improving 3G signal strength in homes or offices where cellular coverage is inadequate. Commonly mounted on rooftops or external walls facing the signal source.

• Rural and Remote Areas: Effective for enhancing signal reception in areas where cellular coverage is limited or weak.

• Cellular Network Testing: Useful in testing and optimizing mobile network performance, especially in areas with challenging signal conditions.

Considerations

• Proper Alignment: Accurate alignment is crucial for optimal performance. The antenna should be directed towards the nearest cell tower or signal source. Using a signal meter or a similar tool can help in aligning the antenna correctly.

• Installation: The antenna is typically mounted outdoors and may require a mast or mounting bracket for stable installation. Ensure the installation adheres to local regulations and guidelines.

• Frequency Compatibility: Verify that the antenna is compatible with the specific frequency bands used by your 3G network to ensure proper operation.

Overall, the 3G 18dBi Yagi antenna is a powerful option for significantly enhancing 3G signal strength, especially in areas with weak coverage. Its high gain and directional characteristics make it suitable for both residential and commercial applications where improved cellular connectivity is needed.

a 3G screw mount antenna system. Here’s a quick overview of the components and what they imply:

1. 3G Screw Mount Antenna: This type of antenna is often designed for mounting on surfaces like walls or poles, using screws. The "3G" indicates that it's optimized for 3G mobile network frequencies. The "cup shaped" part might refer to the design of the antenna, which can sometimes be a more compact, rounded form.

2. RG174 (L-3MTR) Cable: RG174 is a type of coaxial cable used for low-loss transmission in RF applications. It’s generally thinner and more flexible than RG58. The "L-3MTR" means the cable is 3 meters long, providing flexibility in positioning the antenna.

3. SMA Male St. Connector (Cup Shaped): The SMA (SubMiniature version A) connector is used to connect the coaxial cable to the antenna. The "Male St." (Straight) denotes the connector type, and "Cup Shaped" might refer to the physical design of the connector.

This setup is suitable for improving 3G signal reception or transmission. The screw mount allows for secure installation on various surfaces, and the RG174 cable offers flexibility and low-loss transmission over shorter distances. The SMA male connector ensures compatibility with devices that accept SMA connectors.

When installing, aim the antenna towards the strongest signal source and ensure that the cable and connector are properly connected to avoid signal loss.

A specific antenna setup designed for 3G networks. Here’s a detailed overview of the components you mentioned:

1. 3G Screwable Puck Antenna:

   • Puck Antenna: This type of antenna is often compact and round, resembling a "puck." It’s typically designed for ease of installation and can be mounted using screws or adhesive.
   • Screwable: This indicates that the antenna can be securely attached using screws, which is useful for ensuring a stable installation on a flat surface.

2. RG174 Cable (L-3MTR):

   • RG174: This is a thin, flexible coaxial cable designed for RF communications. It’s suitable for applications where space and flexibility are important.
   • L-3MTR: This specifies that the cable is 3 meters long, providing some flexibility in positioning the antenna relative to your equipment.

3. SMA (M) St. Connector 46mm:

   • SMA (M): This refers to an SMA Male connector. SMA connectors are commonly used in RF applications for connecting antennas to devices.
   • St. (Straight): This means the connector is straight, as opposed to angled.
   • 46mm: This likely refers to the length of the SMA connector or the overall height of the puck antenna including the connector.

Summary:

This antenna setup is designed for use with 3G networks and includes:

• Puck-shaped Antenna: Compact and easy to mount.
• RG174 Cable: Flexible and suitable for shorter cable runs.
• SMA Male Connector: Commonly used for connecting antennas to devices.

This setup is ideal for improving 3G signal reception or transmission, especially in environments where you need a compact and easily mountable solution. Make sure to properly position the antenna for the best signal quality and ensure the connections are secure to avoid any signal loss.
