4G External Antenna

A 4G antenna kit that includes several key components:

1.


   4G 10dBi Magnetic Antenna: This is a 4G antenna with a 10dBi gain. The 10dBi gain means this antenna is more powerful than one with a lower dBi rating, providing better signal reception and transmission. The "magnetic" part indicates that the base of the antenna has a magnet, allowing you to easily attach it to a metal surface, which can help in positioning the antenna for optimal signal strength.





2.


   RG174 Cable (L-3mtr): This is a coaxial cable that connects the antenna to your device. RG174 is known for its flexibility and is commonly used in situations where space is tight. The "L-3mtr" specifies that the cable is 3 meters long.





3.


   SMA (M) Straight Connector: This is a straight SMA male connector, used to connect the antenna to your device or other equipment that has a corresponding SMA female connector.




Summary:

• Antenna Type: 4G with 10dBi gain, magnetic base.


• Cable: RG174, 3 meters long.


• Connector: SMA male, straight.

This setup is useful for enhancing 4G signal strength in scenarios where you need to attach the antenna to a metal surface and have a flexible, yet relatively short cable length. The higher gain of the antenna (10dBi) means it will offer better performance compared to lower-gain antennas, especially in areas with weak signal.

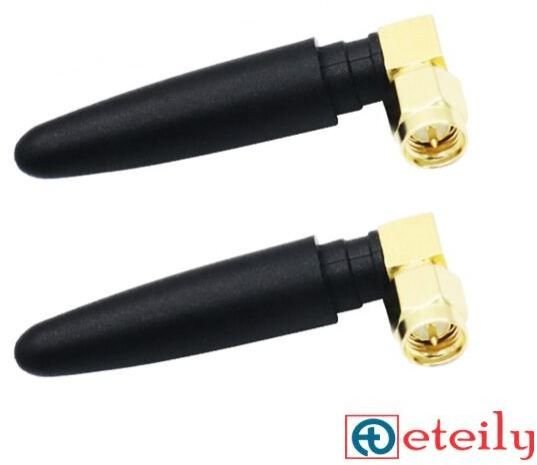

You're describing a compact and commonly used 4G antenna setup. Here’s a breakdown of the components:

1.


   4G 2.5dBi Rubber Duck Antenna: This is a 4G antenna with a 2.5dBi gain. The term "rubber duck" refers to the typical design of the antenna, which is often a flexible, rod-like structure encased in a rubber or plastic material. The 2.5dBi gain indicates a lower gain compared to higher-dBi antennas, so it’s suitable for situations where high signal gain is not as critical.





2.


   SMA (M) R/A Connector: This is a Right-Angle (R/A) SMA male connector. The right-angle design allows the antenna to be connected in a way that can fit into tight spaces or make for a neater setup, minimizing stress on the connector and cable.




Summary:

• Antenna Type: 4G with 2.5dBi gain, rubber duck design.


• Connector: SMA male, right-angle (R/A).

This setup is commonly used in applications where space is limited or where a more compact and flexible antenna is needed. The lower gain (2.5dBi) means it might not perform as well in weak signal areas compared to higher-gain antennas, but it is typically sufficient for average signal conditions and more portable or space-constrained environments.

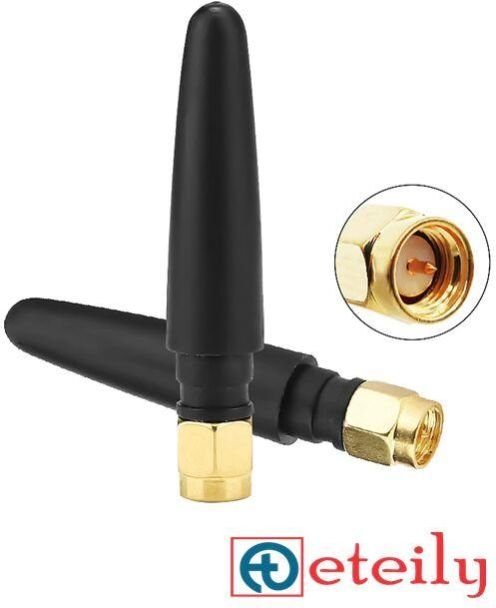

a specific type of antenna. Here's a breakdown of the components and their meaning:

1. 4G: Indicates that the antenna is designed for use with 4G LTE networks, which are commonly used for mobile data communications.

2. 2.5dBi: This refers to the antenna's gain, which is a measure of its ability to direct radio waves in a particular direction. A 2.5 dBi gain is relatively low, meaning the antenna provides broad coverage but might not be as effective at focusing signal strength in a specific direction.

3. Rubber Duck Antenna: This is a type of antenna that is flexible and typically has a rubber or plastic coating. It's called a "rubber duck" because of its shape, which resembles the neck of a rubber duck toy. These antennas are popular for their durability and ease of use.

4. SMA (M): This indicates the type of connector used. SMA stands for SubMiniature version A, and the (M) denotes that it is a male connector. SMA connectors are commonly used in RF applications for connecting antennas to devices.

5. St. Connector: This might be a typo or misinterpretation. It’s likely intended to refer to a standard connector, but SMA is the specific type being used here.

a 4G 3dBi rubber duck antenna with an SMA male movable connector. Here’s a quick breakdown of what that means:

1. 4G: This indicates that the antenna is designed to work with 4G LTE networks, which are commonly used for high-speed mobile data.

2. 3dBi: This is a measure of the antenna's gain. Gain is essentially how well the antenna focuses its signal in a particular direction. A 3dBi gain is relatively low, meaning it provides a wider, more omnidirectional coverage but with less focused signal strength compared to higher gain antennas.

3. Rubber Duck: This is a colloquial term for a type of antenna that is typically flexible and has a cylindrical shape. The "rubber duck" design is popular because it's durable and can be easily mounted or moved.

4. SMA Male: This refers to the type of connector on the antenna. SMA stands for SubMiniature version A, and the male connector indicates the part that has a pin. This type of connector is widely used in radio communications and networking equipment.

5. Movable Connector: This means the connector can be adjusted or rotated, which can be useful for positioning the antenna to get the best signal or to fit different devices.

A 4G 5dBi Adhesive Antenna is a streamlined device engineered to enhance both the reception and transmission of 4G LTE signals. Below is an overview of its characteristics and advantages:

Features:

• 4G LTE Compatibility: This antenna is specifically crafted to function within the 4G LTE frequency bands, ensuring effective signal enhancement for mobile broadband, routers, modems, and Internet of Things (IoT) devices that utilize 4G networks.




• 5dBi Gain: The 5dBi gain reflects the antenna's directional strength. A 5dBi antenna generally provides moderate signal amplification, making it beneficial in areas with suboptimal reception, although it does not offer the same level of enhancement as higher-gain antennas (such as 8dBi or 10dBi). It achieves a balance between range and coverage.




• Adhesive Mounting: Equipped with an adhesive mount, this antenna can be easily affixed to flat surfaces such as walls, windows, or the roofs of vehicles. This design facilitates versatile placement in locations where signal reception is optimal.




• Compact and Discreet: Typically, these antennas are compact, occupying minimal space, and the adhesive backing allows for a subtle installation.

Advantages:

• Enhanced Signal Reception: In areas where 4G coverage is limited or inconsistent, the antenna significantly amplifies the signal, resulting in quicker internet speeds and more reliable connections.




• Simple Installation: The adhesive backing allows for straightforward installation of the antenna without the necessity for drilling or screws.




• Versatile Application: Perfect for improving 4G signals across a range of devices, including mobile hotspots, routers, and even systems mounted in vehicles, thereby enhancing mobile internet access.

Installation Instructions:

• Prepare the Surface: Ensure that the area where the antenna will be mounted is clean and devoid of dust or debris to ensure proper adhesion.




• Peel and Affix: Remove the backing and firmly attach the antenna to a flat surface that offers optimal signal reception (for instance, near a window or on the roof of a car).




• Connect the Cable: If the antenna is equipped with a cable featuring an SMA connector (or another specific type), connect it to your 4G device, such as a router, modem, or hotspot.

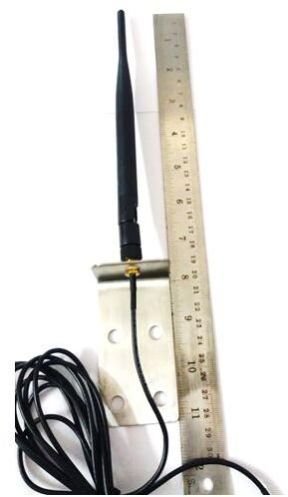

A 4G 5dBi Rubber Duck Antenna with an RG174 cable (L - 3Mtr) is a specific type of antenna setup used to enhance 4G LTE signal reception and transmission. Here’s a breakdown of the components and their characteristics:

4G 5dBi Rubber Duck Antenna

• 4G: This indicates that the antenna is designed to work with 4G LTE networks, which are commonly used for mobile data and high-speed internet connections.


• 5dBi: The dBi value represents the antenna's gain, which is 5 decibels over an isotropic radiator. Higher dBi values generally mean better signal strength and range. A 5dBi antenna offers a good compromise between range and coverage.


• Rubber Duck Type: This refers to the antenna's shape and construction. Rubber duck antennas are typically compact, flexible, and durable. They are often used in a variety of applications due to their ease of use and effectiveness. The rubber or plastic casing provides protection and flexibility, making them suitable for both indoor and outdoor use.

RG174 Cable (L - 3Mtr)

• RG174: This is a type of coaxial cable used for its flexibility and relatively low signal loss at higher frequencies. It is suitable for use with antennas in various communication systems.


• L - 3Mtr: Indicates that the cable length is 3 meters (approximately 10 feet). This length provides some flexibility in positioning the antenna relative to the device it is connected to.

Applications and Usage

•


  Installation:





  • Mounting: Rubber duck antennas are typically easy to install. For the 5dBi version, you might mount it directly on a surface or use a magnetic or adhesive base if it’s for mobile use.


  • Cable Routing: Run the RG174 cable from the antenna to your device, ensuring it is not kinked or sharply bent, as this could affect performance.


  • Connection: Attach the RG174 cable to the antenna and the device. Ensure the connectors are firmly attached to avoid signal loss.






•


  Performance:





  • Coverage: The 5dBi gain offers a balance between long-range and broad coverage. It’s suitable for environments where you need reliable signal strength without going for more specialized high-gain antennas.


  • Flexibility: The rubber duck design makes it resilient to mechanical stress, which is beneficial for both indoor and outdoor installations.





Installation Tips

1. Positioning: Place the antenna in a location that minimizes obstacles and interference. Elevation and orientation can impact performance, so experiment to find the best position.


2. Testing: After installation, check the signal strength and quality to ensure the antenna is performing as expected. Adjust the positioning if needed.


3. Weatherproofing: If used outdoors, ensure that the antenna and cable are weatherproofed or protected from environmental factors to avoid damage.

Potential Applications

• Home and Office: Enhances signal reception for 4G LTE routers or modems, improving data speeds and connectivity.


• Vehicles: Can be used in vehicles to boost mobile data connections, useful for mobile hotspots or in-vehicle internet systems.


• Remote Locations: Ideal for areas with weak signal reception where a boost is needed to maintain a stable connection.

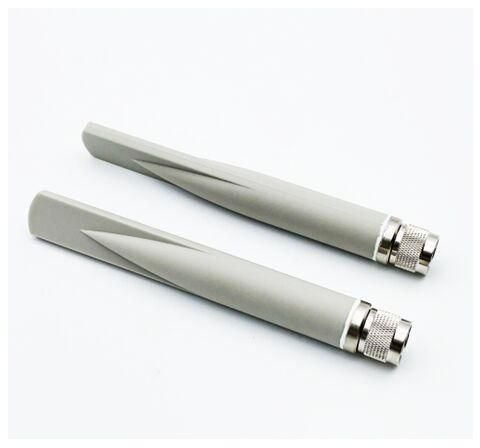

The 4G 5dBi Waterproof Rubber Duck Antenna with an N (Male) Straight Connector is a specialized antenna setup designed for robust performance in various environments. Here’s a detailed look at each component:

4G 5dBi Waterproof Rubber Duck Antenna

• 4G: Designed for use with 4G LTE networks, which are standard for high-speed mobile data and internet connections.


• 5dBi Gain: This indicates the antenna’s ability to amplify signals. A 5dBi gain provides a good balance between signal range and coverage, making it suitable for most general use cases where enhanced signal strength is needed.


• Waterproof: The antenna is designed to withstand exposure to water, making it suitable for outdoor or harsh environments where moisture could be a concern. Waterproofing ensures durability and reliable performance in various weather conditions.


• Rubber Duck: The antenna has a flexible, rubberized casing. This design is not only durable but also helps protect the antenna from physical damage and environmental elements.

N (Male) Straight Connector

• N Connector: A type of RF connector used for connecting antennas to devices. The N (Male) connector has a protruding pin that fits into an N (Female) connector on the device or cable.


• Straight Connector: Refers to the connector being linear, as opposed to an angled version. This means the connection will be in a straight line, which is typically used where a direct, unobstructed connection is needed.

Installation and Usage

1.


   Mounting the Antenna:





   • Outdoor Use: The waterproof feature allows for outdoor installation. Mount the antenna in a location where it can receive the best signal, and ensure it is securely fastened to prevent movement or damage.


   • Indoor Use: While designed for outdoor use, it can also be used indoors in environments that might be damp or require a rugged antenna.






2.


   Connecting the Antenna:





   • N Connector: Attach the N (Male) connector to the corresponding N (Female) port on your device or cable. Ensure a secure connection to avoid signal loss or interference.






3.


   Cable:





   • If you're using this antenna with a cable, ensure that the cable is of high quality and suited to the frequencies you're working with. The RG174 cable is commonly used for such connections, but verify compatibility with your setup.






4.


   Positioning:





   • For optimal performance, position the antenna in an area with minimal obstruction and away from sources of interference. The antenna's waterproof design allows for flexible installation options, even in less sheltered locations.





Applications

• Outdoor Installations: Ideal for environments where the antenna will be exposed to the elements, such as on rooftops, outdoor walls, or in remote locations.


• Vehicles: Suitable for mounting on vehicles, providing a durable and weather-resistant solution for mobile data needs.


• Industrial or Harsh Environments: Can be used in industrial settings where robust and reliable antenna performance is required, even in challenging conditions.

Benefits

• Durability: The waterproof and rubberized design enhances the antenna's lifespan and performance in various environmental conditions.


• Enhanced Signal: The 5dBi gain provides a strong and stable signal, improving connectivity and data speeds.

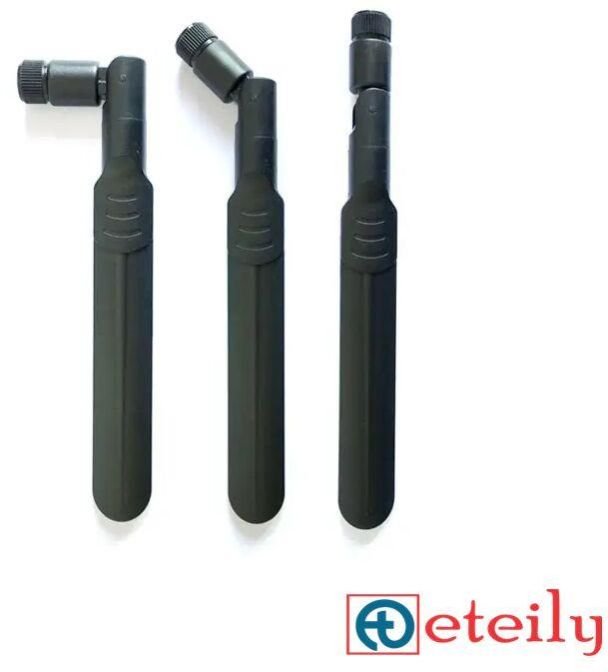

The 4G 6dBi Rubber Duck Whip Type Antenna with an SMA (Male) Connector (Movable Body) is a versatile antenna designed to enhance 4G LTE signal strength. Here’s a detailed look at its features and uses:

Features Breakdown 1. 4G 6dBi Rubber Duck Whip Type Antenna

• 4G: This antenna is specifically designed to operate with 4G LTE networks, providing better signal reception and transmission for 4G devices.


• 6dBi Gain: The 6dBi gain indicates that the antenna can amplify the signal significantly. This higher gain compared to 5dBi antennas offers improved range and signal strength, making it suitable for situations where better connectivity is needed.


• Rubber Duck: The term "rubber duck" refers to the antenna's flexible and durable design, usually covered with a rubber or plastic casing. This provides both physical protection and flexibility.


• Whip Type: This describes the antenna's form factor. Whip antennas are long and slender, and they are known for their durability and effective performance in various conditions. The whip design typically provides a good balance between size and signal strength.

2. SMA (Male) Connector

• SMA Connector: This is a common RF connector used to connect antennas to devices. The "Male" SMA connector has a center pin that fits into an SMA (Female) connector on the device or cable.


• Movable Body: The movable or adjustable body means that the antenna can be angled or positioned to optimize signal reception. This feature allows for flexible placement and adjustment to achieve the best performance.

Installation and Usage 1. Mounting the Antenna

• Flexible Positioning: The movable body allows you to adjust the antenna to the best angle for optimal signal reception. This flexibility is useful for fine-tuning the antenna's position to maximize signal strength.


• Mounting Options: Depending on the design, you can typically mount this antenna on various surfaces or use a compatible base for attachment. Ensure it is securely mounted and in a location that minimizes obstructions and interference.

2. Connecting the Antenna

• SMA (Male) Connector: Connect the antenna to your device using the SMA connector. Make sure the connection is snug to prevent signal loss or disconnection.

3. Adjusting the Antenna

• Angle and Position: Use the movable body feature to adjust the antenna’s angle. Experiment with different positions to find the one that provides the best signal strength and stability for your setup.

Applications

• Home and Office: Improves signal strength for routers, modems, or other 4G LTE devices, enhancing data speeds and connectivity.


• Vehicles: Can be used in cars or trucks to boost mobile data connections, providing better internet access while on the move.


• Remote Locations: Suitable for use in areas with weak signal reception where a stronger, more flexible antenna is needed.

Benefits

• Enhanced Signal: The 6dBi gain provides stronger and more stable connectivity, especially useful in areas with poor reception.


• Durability: The rubber duck design offers protection against physical damage and environmental factors.


• Flexibility: The movable body allows for easy adjustment, helping to find the optimal signal reception angle.

Enhance Your Wireless Connectivity with a High-Gain Antenna Configuration – 4G 9dBi Rubber Magnetic High-Gain Router Antenna

Optimize your internet performance and broaden your coverage with our high-gain antenna configuration, which includes a 4G 9dBi rubber magnetic high-gain router antenna. This robust antenna is engineered to strengthen your wireless signal, providing a reliable and accelerated connection, even in locations with poor reception. Ideal for routers, modems, and various wireless devices, this antenna improves your signal intensity and expands your coverage area.

Here’s a breakdown of the components:

1.


   4G 9dBi Rubber Magnetic High Gain Router Antenna: This antenna is designed to enhance the signal strength of a 4G LTE router. The 9dBi gain indicates that it provides a higher signal gain compared to standard antennas, which can improve both reception and transmission range. The rubber design suggests it’s durable and can withstand some environmental factors.





2.


   Magnetic Base: This allows the antenna to be easily mounted on metal surfaces, which helps in positioning it for optimal signal reception. It’s a convenient feature if you need to place the antenna in different locations to find the best signal.





3.


   RG174 Cable (L-3Mtr): The RG174 is a type of coaxial cable used for connecting antennas. The “L-3Mtr” indicates the length of the cable, which is 3 meters (approximately 10 feet). This length provides some flexibility in positioning the antenna away from the router.





4.


   SMA (M) St. Connector: This is a type of connector commonly used in RF applications. The “SMA (M)” indicates that the connector is male and is used to connect the antenna to your router.




Overall, this setup should help boost your 4G signal strength and improve connectivity. Just ensure that your router has a compatible SMA connector and that the placement of the antenna is optimized for the best signal reception.
