4G Outdoor Antenna

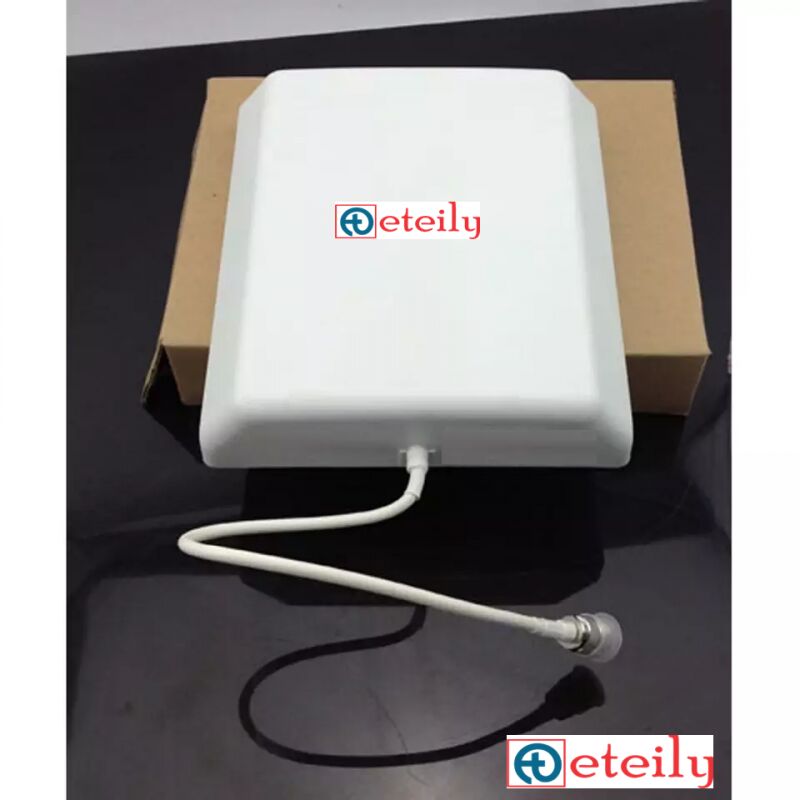

The 4G 12dBi Outdoor Patch Panel Antenna with N (F) Straight Connector is designed for outdoor applications to improve 4G LTE signal strength and coverage. Here’s a detailed overview of its features and benefits:

1. 4G LTE Compatibility:

   • Purpose: This antenna is specifically engineered to enhance connectivity for 4G LTE networks, providing better signal reception and transmission.

2. 12dBi Gain:

   • Gain: The 12dBi gain indicates a significant level of signal amplification. This provides improved performance compared to lower gain antennas, making it suitable for long-range communication and areas with weak signal reception.
   • Directional: While "patch panel" antennas are often somewhat directional, they provide wider coverage compared to highly directional antennas like Yagi antennas.

3. Outdoor Patch Panel Design:

   • Construction: The patch panel antenna typically features a flat, rectangular design that can be mounted on a wall or pole. This design is optimized for outdoor use, with a focus on durability and signal coverage.
   • Performance: Designed to offer a good balance of range and coverage, making it versatile for various outdoor scenarios.

4. N (F) Straight Connector:

   • Type: The N Female (F) straight connector is a robust RF connector used in many outdoor antenna setups. The "straight" configuration means the connector is designed for a direct, linear connection.
   • Usage: Connects to devices or cables with an N Male connector, which is commonly used for high-frequency applications due to its reliability and durability.

• Enhanced Signal Strength: The 12dBi gain provides substantial signal amplification, which is beneficial for boosting connectivity in areas with weak 4G signals.
• Wide Coverage: The patch panel design offers a wider coverage area compared to highly directional antennas, making it suitable for general outdoor use.
• Durable Construction: Designed for outdoor environments, this antenna is built to withstand various weather conditions and provide reliable performance.

• Rural and Remote Areas: Ideal for improving 4G LTE signals in locations where network coverage is weak or sporadic.
• Outdoor Installations: Suitable for installation on walls, poles, or rooftops where high signal gain and durability are required.
• Signal Boosting: Used to enhance the signal strength of 4G LTE modems, routers, or other network equipment, particularly in challenging signal environments.

• Mounting: Ensure the antenna is securely mounted in a location with minimal obstructions to maximize signal reception. The antenna should ideally be mounted as high as possible.
• Aiming: If the antenna is somewhat directional, aim it towards the nearest cell tower or signal source for optimal performance.
• Connector Handling: The N Female connector should be properly connected to an N Male cable or device, ensuring a secure and weatherproof connection.

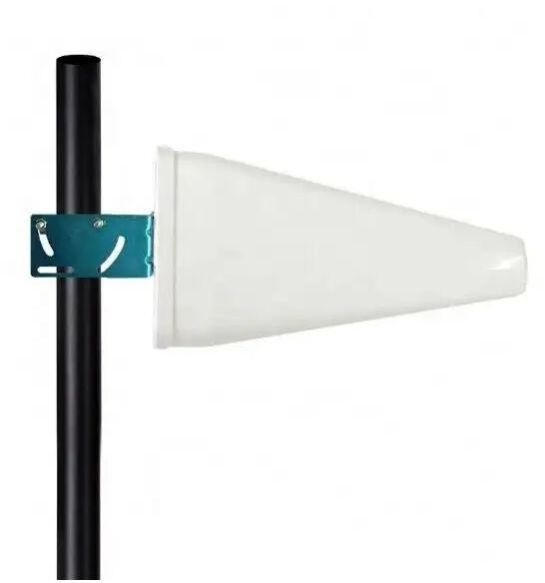

The 4G LPDA 14dBi Outdoor Antenna with RG58 Cable (L-3Mtr) + SMA (M) Straight Connector is a high-performance antenna setup designed to enhance 4G LTE connectivity. Here’s a detailed overview of its features and components:

Features

1.


   4G LTE Compatibility:





   • Purpose: Optimized for use with 4G LTE networks to improve signal reception and transmission.






2.


   14dBi Gain:





   • Gain: The 14dBi gain indicates substantial signal amplification, making this antenna suitable for long-range signal reception and improving connectivity in weak signal areas.


   • LPDA Design: LPDA stands for Log-Periodic Dipole Array. This design offers wide bandwidth and directional gain, making it effective for various frequencies used in 4G LTE networks.






3.


   LPDA (Log-Periodic Dipole Array) Design:





   • Design: LPDA antennas are known for their wide frequency range and directional characteristics. They provide enhanced signal gain and are effective over a broad range of frequencies.


   • Performance: The LPDA design allows for excellent performance across multiple 4G LTE bands, making it versatile and efficient.






4.


   RG58 Cable (L-3Mtr):





   • Cable Type: RG58 is a flexible coaxial cable used in RF applications. It is suitable for connecting the antenna to the network equipment.


   • Length: The cable length is 3 meters, providing enough flexibility for positioning the antenna and connecting it to your equipment.






5.


   SMA (M) Straight Connector:





   • Type: The SMA Male (straight) connector is a widely used RF connector known for its reliability. The "straight" configuration means it is designed for a direct, linear connection.


   • Usage: Connects the RG58 cable to devices or equipment with an SMA Female port, which is common in many routers and modems.





Advantages

• High Gain: The 14dBi gain offers significant signal amplification, which is beneficial for improving connectivity in areas with weak signal reception or for reaching distant cell towers.


• Wide Bandwidth: The LPDA design supports a broad frequency range, making it suitable for various 4G LTE bands.


• Outdoor Durability: Designed for outdoor use, ensuring robust performance in various weather conditions.


• Flexible Cable: The 3-meter RG58 cable allows for flexible installation and positioning of the antenna.

Typical Applications

• Rural and Remote Locations: Ideal for enhancing 4G LTE signals in areas where network coverage is limited.


• Outdoor Installations: Suitable for mounting on rooftops, poles, or walls to improve signal reception and transmission.


• Signal Boosting: Used to enhance the performance of 4G LTE modems, routers, or other network equipment, particularly in areas with challenging signal conditions.

Installation Tips

• Mounting: Ensure the antenna is securely mounted in a location with minimal obstructions to maximize signal reception. Aim to mount it as high as possible for optimal performance.


• Aiming: If the antenna is directional, aim it towards the nearest cell tower to improve signal strength.


• Connector Handling: Make sure the SMA Male connector is properly connected to the SMA Female port on your equipment. Ensure all connections are secure to maintain signal quality.

Considerations

• Signal Path: Ensure the antenna is positioned and oriented correctly to achieve the best signal reception and transmission.


• Cable Management: Properly route and secure the RG58 cable to avoid damage and ensure reliable performance.

The 4G LTE 10dBi Outdoor Fiberglass Antenna with N Male Straight Connector is designed for enhancing 4G LTE signal reception and transmission in outdoor settings. Here’s a detailed overview of its features and benefits:

Features

1.


   4G LTE Compatibility:





   • Purpose: Specifically designed to work with 4G LTE networks, providing improved signal strength and coverage compared to standard antennas.


   • Frequency Range: Typically supports the LTE frequency bands used by most carriers, which can include 700 MHz, 800 MHz, 1800 MHz, 2600 MHz, and others, depending on the specific model.






2.


   10dBi Gain:





   • Gain: The 10dBi gain indicates a high level of signal amplification. A 10dBi gain antenna focuses the signal more effectively, which improves both reception and transmission range.


   • Performance: This high gain is useful for long-range communication and in areas with weak signal strength.






3.


   Fiberglass Construction:





   • Material: Made from fiberglass, which is durable and weather-resistant. Fiberglass antennas are known for their longevity and ability to withstand harsh environmental conditions.


   • Design: The fiberglass body helps protect the internal components from UV rays, moisture, and physical damage.






4.


   Outdoor Use:





   • Durability: Designed for outdoor installation, making it suitable for use in various weather conditions. The robust construction ensures reliable performance in challenging environments.






5.


   N Male Straight Connector:





   • Type: The N Male connector is a standard RF connector known for its durability and good performance.


   • Straight Configuration: "St." or straight connector is typically used for direct, linear connections.


   • Compatibility: This connector type is commonly used in outdoor antenna installations, particularly for connecting to coaxial cables that run from the antenna to the modem or router.





Advantages

• Enhanced Signal Strength: The 10dBi gain provides substantial signal amplification, which is beneficial in areas with weak signal reception or where long-range connectivity is needed.


• Weather-Resistant: The fiberglass construction and outdoor design make it suitable for use in various weather conditions, ensuring long-term reliability.


• Durable Connector: The N Male connector is sturdy and reliable, suitable for outdoor applications and providing a secure connection.

Typical Applications

• Rural Areas: Useful in rural or remote locations where 4G LTE signal strength might be weak.


• Rooftop Installations: Ideal for installation on rooftops or outdoor poles where high signal gain and durability are needed.


• Signal Boosting: Often used in conjunction with signal boosters to enhance overall network performance.

Installation Tips

• Mounting: Ensure the antenna is mounted in a location with minimal obstructions to maximize signal reception.


• Orientation: Properly orient the antenna to align with the nearest cell tower for optimal performance.


• Protection: Check that all connections are weatherproofed to prevent water ingress and maintain performance.

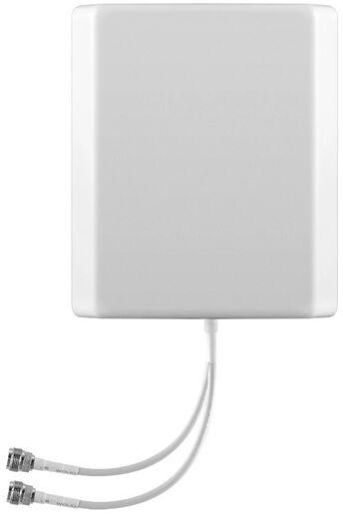

The 4G LTE 14dBi MIMO Outdoor Patch Panel with RG58 (L-10CM) Cable + N (F) Straight Connector is a specialized antenna system designed to enhance 4G LTE signal reception and transmission, particularly in outdoor environments. Here’s a detailed breakdown of its components and features:

Components and Features

1.


   4G LTE Compatibility:





   • Purpose: Specifically designed to work with 4G LTE networks, improving connectivity for devices that operate on these frequencies.






2.


   14dBi Gain:





   • Gain: The 14dBi gain indicates a high level of signal amplification, making this antenna suitable for areas where signal strength is weak or where long-range signal reception is needed.


   • MIMO Technology: The antenna is equipped with Multiple Input Multiple Output (MIMO) technology, which enhances data throughput and network reliability by using multiple signal paths.






3.


   Outdoor Patch Panel Design:





   • Construction: The patch panel design is flat and rectangular, optimized for mounting on walls or poles. It’s designed to be durable and weather-resistant for outdoor use.


   • Coverage: Provides a broad coverage area compared to highly directional antennas, though it still offers focused signal gain in its directional pattern.






4.


   RG58 Cable (L-10CM):





   • Cable Type: RG58 is a coaxial cable used for RF applications. It is relatively flexible and suitable for connecting antennas to equipment.


   • Length: The cable is 10 centimeters long, which is typically used for connecting the antenna directly to nearby equipment or for short cable runs.






5.


   N (F) Straight Connector:





   • Type: The N Female (F) straight connector is a robust RF connector used for outdoor and high-frequency applications.


   • Usage: The N Female connector connects to devices or cables with an N Male connector, ensuring a secure and reliable connection.





Advantages

• High Gain: The 14dBi gain provides substantial signal amplification, which is beneficial for enhancing connectivity in weak signal areas.


• MIMO Technology: Improves overall data performance and network stability by utilizing multiple signal paths.


• Outdoor Durability: Designed to withstand harsh weather conditions, making it suitable for outdoor installations.


• Flexible Cable: The RG58 cable allows for easy connection and positioning of the antenna.

Typical Applications

• Rural and Remote Areas: Ideal for enhancing 4G LTE signals in areas with limited network coverage.


• Outdoor Installations: Suitable for mounting on outdoor surfaces such as walls, poles, or rooftops to improve signal reception.


• Signal Boosting: Useful for improving the performance of 4G LTE modems or routers, particularly where signal strength is critical.

Installation Tips

• Mounting: Securely mount the antenna in a location with minimal obstructions to maximize signal reception. Ensure it is mounted as high as practical for optimal performance.


• Aiming: If the antenna has a directional pattern, aim it towards the nearest cell tower to enhance signal strength.


• Connector Handling: Ensure the N Female connector is properly connected to the N Male cable or device, and check for a secure and weatherproof connection.

Considerations

• Signal Path: For optimal MIMO performance, ensure that multiple antennas (if part of a MIMO setup) are spaced appropriately to avoid signal interference.


• Cable Quality: While RG58 is flexible, make sure the cable is routed properly to avoid damage and maintain signal quality.

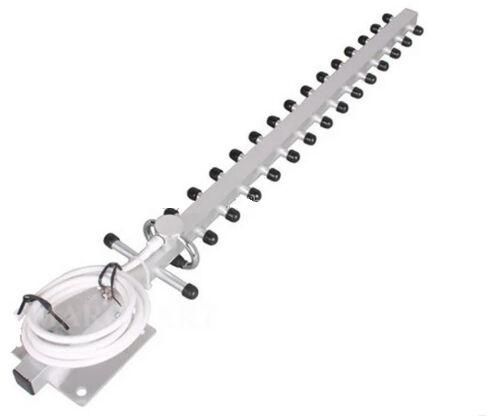

The 4G LTE 16dBi Yagi Antenna with RG58 (L-3Mtr) Cable + SMA (M) Straight Connector is designed for high-performance signal reception and transmission in 4G LTE networks. Here’s a detailed breakdown of its features and benefits:

Features

1.


   4G LTE Compatibility:





   • Purpose: This antenna is specifically designed for 4G LTE networks, improving signal strength and connectivity for 4G LTE devices.






2.


   16dBi Gain:





   • Gain: With a 16dBi gain, this Yagi antenna offers high signal amplification. This high gain provides excellent performance for long-range signal reception and transmission.


   • Directional: The Yagi design is directional, meaning it focuses the signal in a specific direction, which enhances performance and range in that direction.






3.


   Yagi Antenna Design:





   • Construction: The Yagi antenna consists of multiple elements (such as a driven element, reflector, and directors) that focus the signal more effectively compared to omnidirectional antennas.


   • Performance: This design is ideal for situations where the signal source is known to be in a specific direction, such as a distant cell tower.






4.


   RG58 Cable (L-3Mtr):





   • Cable Type: RG58 is a coaxial cable often used in RF applications. It is relatively flexible and suitable for indoor and outdoor use.


   • Length: The cable is 3 meters long, providing ample length to connect the antenna to your equipment while allowing for flexible placement.






5.


   SMA (M) Straight Connector:





   • Type: The SMA Male (straight) connector is a common RF connector known for its reliability in connecting antennas to devices.


   • Usage: This connector will connect the RG58 cable to devices with an SMA Female port, such as a router or modem.





Advantages

• High Gain: The 16dBi gain provides significant signal amplification, which is useful for improving connectivity in weak signal areas or for reaching distant cell towers.


• Directional Focus: The Yagi design helps to focus the signal, which can be particularly advantageous in areas with weak signal reception or when precise signal targeting is required.


• Cable Length: The 3-meter RG58 cable offers flexibility in positioning the antenna for optimal performance without being constrained by cable length.


• Durable Connector: The SMA connector is sturdy and suitable for connecting the antenna to various devices, ensuring a reliable and secure connection.

Typical Applications

• Remote Locations: Ideal for use in areas with weak 4G LTE signals, such as rural or remote locations, where a strong and focused signal is necessary.


• Long-Distance Signal Reception: Useful for applications where the signal source is far away, such as a distant cell tower or a weak signal area.


• Signal Boosting: Often used to enhance the performance of 4G LTE modems or routers, especially in areas where signal strength is critical.

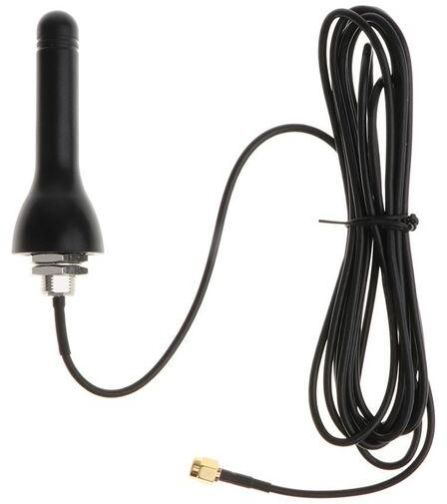

4G LTE 4dBi screw mount duck-type antenna with an RG174 cable and an SMA (Male) straight connector. Here's a detailed breakdown of each component and what it means:

• 4G LTE: The antenna is designed to operate on 4G LTE networks, enhancing signal reception and transmission for devices that use this technology.
• 4dBi: This refers to the antenna's gain, which is 4 decibels relative to an isotropic radiator (dBi). The gain indicates how well the antenna can amplify the signal; in general, a higher dBi means better performance and signal reach. A 4dBi antenna provides a good balance between signal range and coverage.
• Screw Mount: This design allows the antenna to be securely attached to a mount or surface via a screw. This can be useful for fixed installations where stability is crucial.
• Duck Type: This describes the antenna's shape, which resembles a duck's head. Duck-type antennas are compact and often used for their ease of installation and decent performance in a variety of applications.

• RG174: This is a type of coaxial cable known for its flexibility and suitability for higher frequency signals. It's often used in applications where space constraints are a consideration.
• L-3MTR: Indicates that the cable length is 3 meters (approximately 10 feet), providing some flexibility in positioning the antenna relative to the device.

• SMA (Male): This connector type has a protruding center pin and is commonly used in RF applications. It’s designed to connect the antenna to a device with an SMA (Female) port.
• Straight Connector: The connector is straight rather than angled, which typically means it provides a direct connection with no bend or curve.

1. Mounting the Antenna: Secure the screw mount antenna to a stable surface using the provided screw or mounting hardware. Ensure it’s placed in a location that maximizes signal reception.

2. Connecting the Cable: Attach one end of the RG174 cable to the antenna and the other end to the device. Ensure the connections are tight to avoid signal loss.

3. Positioning: The performance of the antenna can be affected by its positioning. Ideally, place it in a location with minimal obstructions and where it can receive the best possible signal.

4. Testing: After installation, test the signal strength and performance to ensure the antenna is functioning optimally. Adjust the placement if necessary.

• Fixed Installations: Enhances signal strength for stationary devices such as routers, modems, or network equipment.
• Vehicles: Can be used in vehicles to improve connectivity for mobile internet devices or other communication systems.

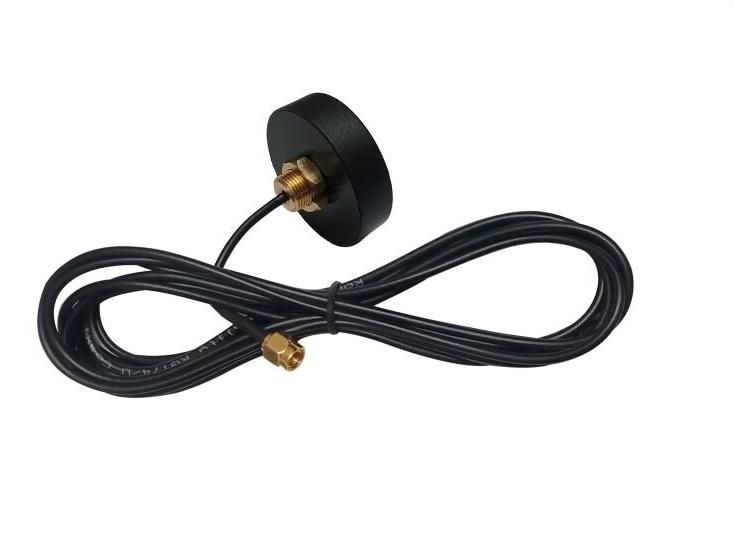

A 4G screwable puck antenna that's designed for use with RG174 coaxial cable and has an SMA (Male) straight connector. Here’s a breakdown of the components:

1. 4G Screwable Puck Antenna: This type of antenna is typically used for mobile and fixed wireless communications. The "puck" shape often refers to its compact, circular design. The 4G designation means it's optimized for 4G LTE networks.

2. RG174 Cable (L-3MTR): RG174 is a type of coaxial cable that’s relatively thin and flexible. The "L-3MTR" indicates the length of the cable is 3 meters (approximately 10 feet).

3. SMA (M) Straight Connector: This is a common type of RF connector. The "M" stands for Male, meaning it has a protruding center pin. The straight design refers to the connector being linear, as opposed to angled.

4. 46mm: This could refer to the diameter of the antenna or a component of the connector.

This setup is often used in various wireless applications, including enhancing signal reception for 4G LTE devices or routers. If you have any specific questions or need help with installation, feel free to ask!

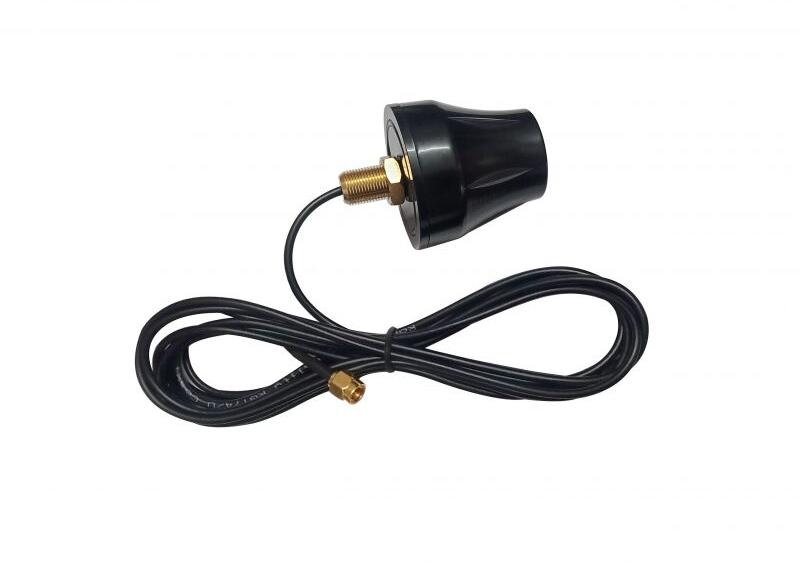

A 4G screw mount antenna that comes with an RG174 cable, specifically with a length of 3 meters (L-3MTR). Here’s a detailed breakdown of what you might be dealing with:

4G Screw Mount Antenna

• Design: This type of antenna is generally designed for robust outdoor or indoor use. The "screw mount" refers to how the antenna attaches—it typically screws into a mounting bracket or panel.
• Frequency: It’s optimized for 4G LTE frequencies, which means it’s designed to work with 4G networks, providing enhanced signal reception and transmission.
• Mounting: The screw mount feature makes it versatile for different installation locations, including vehicles, buildings, or other structures.

RG174 Cable

• Cable Type: RG174 is a coaxial cable known for its flexibility and is often used in applications where space is limited. It's suitable for higher frequency signals, like those used in 4G networks.
• Length (L-3MTR): The cable length is 3 meters (approximately 10 feet), which provides some flexibility in positioning the antenna away from the device it's connected to.

Connector Types

While the cable and antenna combination is often specified, the exact type of connector might vary. Common connectors include:

• SMA (Male or Female): Often used for connecting antennas to devices.
• TS9: Sometimes used in mobile broadband equipment.
• MCX or MMCX: Smaller connectors used in some specific applications.

Installation

1. Mounting: Secure the antenna to a suitable surface using the screw mount. Ensure it’s positioned where it can receive the best signal.
2. Cable Routing: Run the RG174 cable from the antenna to your device. Be mindful of cable routing to avoid kinks and ensure optimal signal transmission.
3. Connecting: Attach the cable to the device or router using the appropriate connector. Ensure a snug fit to avoid signal loss.

Applications

• Fixed Installations: Enhances signal strength in fixed locations, such as home or office setups.
• Vehicles: Provides better connectivity for mobile hotspots or other devices in vehicles.
