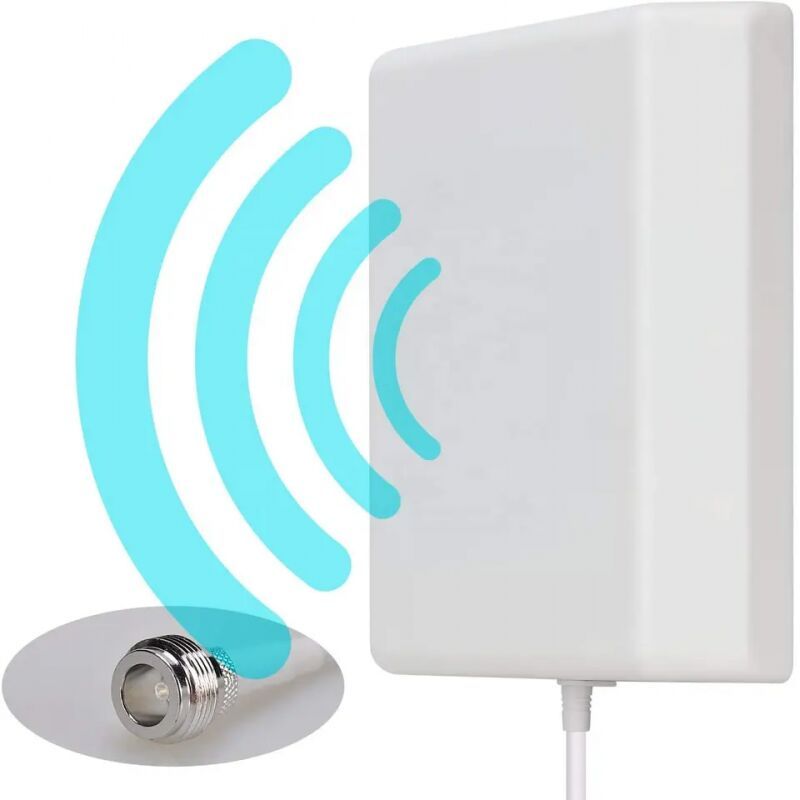

868MHz 12dBi Outdoor Patch Panel Antenna with N (F) St. Connector

The 868 MHz 12dBi Outdoor Patch Panel Antenna you mentioned is a high-gain antenna designed for outdoor use and tuned to the 868 MHz frequency range. Here’s a detailed breakdown of its features and typical uses:

1. 868 MHz Frequency:

   • Usage: This frequency is commonly used for long-range wireless communication in IoT, telemetry, and some types of radio networks.

2. 12dBi Gain:

   • High Gain: A 12dBi gain means this antenna is highly efficient at focusing the signal in a specific direction, which can significantly increase the range and signal strength compared to lower-gain antennas.
   • Directional Coverage: It generally provides a narrower beamwidth, which is ideal for point-to-point communication or when aiming for specific coverage areas.

3. Outdoor Patch Panel:

   • Durability: Designed to withstand outdoor conditions, including weather and UV exposure. The panel typically has a robust construction to ensure longevity.
   • Mounting: Patch panel antennas are often mounted on a wall or pole and provide a more permanent installation compared to portable antennas.

1. Long-Range Communication:

   • Suitable for applications where you need to cover larger distances or penetrate obstacles, like in rural areas, large facilities, or between buildings.

2. IoT Networks:

   • Useful in IoT networks where sensors or devices need to communicate over long distances with minimal interference.

3. Telematics and Remote Monitoring:

   • Ideal for remote monitoring systems where reliable and strong signal coverage is crucial.

1. Alignment:

   • Due to its high gain and directional nature, precise alignment towards the target device or area is necessary to achieve optimal performance.

2. Mounting Location:

   • Choose a location that provides a clear line of sight to the target area to avoid obstructions and maximize range.

3. Weatherproofing:

   • Ensure that the installation is done with proper sealing and mounting to prevent water ingress and damage.

4. Cabling:

   • High-quality, low-loss cables should be used to connect the antenna to the RF equipment to minimize signal loss.
