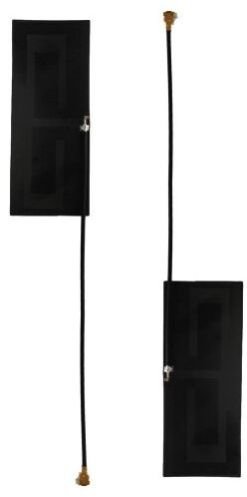

868MHz / LoRa 5dBi PCB Flexible Antenna with 1.13mm Cable (L -10 CM) + UFL Connector

The 868 MHz / LoRa 5dBi PCB Flexible Antenna you're referring to is designed for use with LoRa (Long Range) communication systems, which are popular in IoT and other long-distance wireless applications. Here’s a detailed breakdown of the features and uses:

Features:

1. 868 MHz Frequency:

   • Usage: This is the frequency commonly used for LoRa and other long-range wireless communications in regions where the 868 MHz band is allocated (e.g., Europe).

2. 5dBi Gain:

   • Moderate Gain: A 5dBi gain antenna provides a balance between range and coverage. It's not as high-gain as a 12dBi antenna, but it's sufficient for many LoRa applications, offering a good range while maintaining a wider beamwidth than higher-gain antennas.

3. PCB Flexible Antenna:

   • Flexible Design: The antenna is designed to be flexible, which allows it to be bent and shaped to fit different enclosures or mounting configurations. This makes it suitable for various applications where space and orientation might be constrained.

4. 1.13mm Cable:

   • Thin and Flexible: The 1.13mm coaxial cable is thin and flexible, making it easy to route within compact devices. It’s suitable for connecting the antenna to the PCB with minimal bulk.

5. Cable Length - 10 CM:

   • Length: The 10 cm length is often adequate for internal applications, providing enough reach to position the antenna effectively within a device.

6. UFL Connector:

   • Connector Type: The UFL (also known as IPEX or IPX) connector is a small, common connector for internal antennas in compact devices. It allows easy attachment to the PCB and is used in many small electronic devices.

Typical Applications:

1. LoRa Devices:

   • LoRa Communication: Ideal for LoRa transceivers and modules operating in the 868 MHz band. This antenna helps achieve long-range, low-power wireless communication, which is essential for IoT sensors, smart agriculture, and other remote monitoring applications.

2. Compact Wireless Devices:

   • Internal Mounting: The flexible nature and compact size of the antenna make it suitable for integration into small or portable devices where space is limited.

3. Prototyping:

   • Development and Testing: Useful for prototyping and testing LoRa-enabled devices due to its easy integration and flexible mounting options.

Installation Considerations:

1. Antenna Placement:

   • Optimal Positioning: Ensure the antenna is positioned to maximize its performance. Avoid placing it near metal objects or in enclosed spaces that could attenuate the signal.

2. Connection:

   • Secure Attachment: The UFL connector should be securely attached to avoid connectivity issues. Make sure the connection is solid and free from any mechanical stress that could cause disconnection.

3. Flexibility and Stress:

   • Cable Management: Route the flexible cable carefully to avoid sharp bends or excessive stress that could damage the cable or connector over time.

4. Environmental Considerations:

   • Indoor Use: This antenna is primarily designed for indoor or enclosed environments. If outdoor use is required, ensure it is protected from environmental factors that could affect its performance.
