4G Lpda 14dBi Outdoor Antenna with RG58 Cable (L-3Mtr) + Sma (m) ST. Connector

The 4G LPDA 14dBi Outdoor Antenna with RG58 Cable (L-3Mtr) + SMA (M) Straight Connector is a high-performance antenna setup designed to enhance 4G LTE connectivity. Here’s a detailed overview of its features and components:

Features

1.


   4G LTE Compatibility:





   • Purpose: Optimized for use with 4G LTE networks to improve signal reception and transmission.






2.


   14dBi Gain:





   • Gain: The 14dBi gain indicates substantial signal amplification, making this antenna suitable for long-range signal reception and improving connectivity in weak signal areas.


   • LPDA Design: LPDA stands for Log-Periodic Dipole Array. This design offers wide bandwidth and directional gain, making it effective for various frequencies used in 4G LTE networks.






3.


   LPDA (Log-Periodic Dipole Array) Design:





   • Design: LPDA antennas are known for their wide frequency range and directional characteristics. They provide enhanced signal gain and are effective over a broad range of frequencies.


   • Performance: The LPDA design allows for excellent performance across multiple 4G LTE bands, making it versatile and efficient.






4.


   RG58 Cable (L-3Mtr):





   • Cable Type: RG58 is a flexible coaxial cable used in RF applications. It is suitable for connecting the antenna to the network equipment.


   • Length: The cable length is 3 meters, providing enough flexibility for positioning the antenna and connecting it to your equipment.






5.

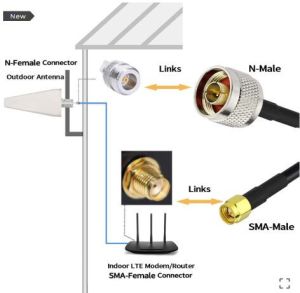

   SMA (M) Straight Connector:





   • Type: The SMA Male (straight) connector is a widely used RF connector known for its reliability. The "straight" configuration means it is designed for a direct, linear connection.


   • Usage: Connects the RG58 cable to devices or equipment with an SMA Female port, which is common in many routers and modems.





Advantages

• High Gain: The 14dBi gain offers significant signal amplification, which is beneficial for improving connectivity in areas with weak signal reception or for reaching distant cell towers.


• Wide Bandwidth: The LPDA design supports a broad frequency range, making it suitable for various 4G LTE bands.


• Outdoor Durability: Designed for outdoor use, ensuring robust performance in various weather conditions.


• Flexible Cable: The 3-meter RG58 cable allows for flexible installation and positioning of the antenna.

Typical Applications

• Rural and Remote Locations: Ideal for enhancing 4G LTE signals in areas where network coverage is limited.

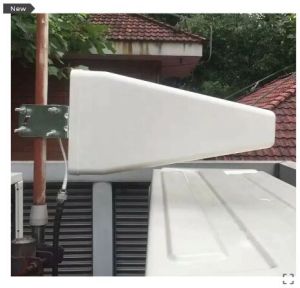

• Outdoor Installations: Suitable for mounting on rooftops, poles, or walls to improve signal reception and transmission.

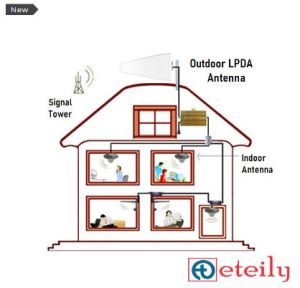

• Signal Boosting: Used to enhance the performance of 4G LTE modems, routers, or other network equipment, particularly in areas with challenging signal conditions.

Installation Tips

• Mounting: Ensure the antenna is securely mounted in a location with minimal obstructions to maximize signal reception. Aim to mount it as high as possible for optimal performance.


• Aiming: If the antenna is directional, aim it towards the nearest cell tower to improve signal strength.


• Connector Handling: Make sure the SMA Male connector is properly connected to the SMA Female port on your equipment. Ensure all connections are secure to maintain signal quality.

Considerations

• Signal Path: Ensure the antenna is positioned and oriented correctly to achieve the best signal reception and transmission.


• Cable Management: Properly route and secure the RG58 cable to avoid damage and ensure reliable performance.
