Twitter| Business Type | Manufacturer, Exporter, Supplier, Trader, Distributor |
| Brand Name | ETEILY |
| Material | Brass |
| Current Type | DC |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details

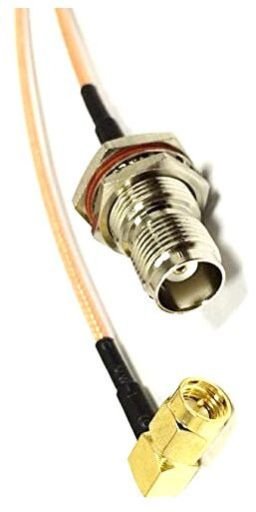

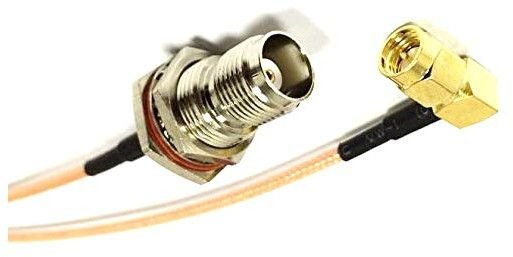

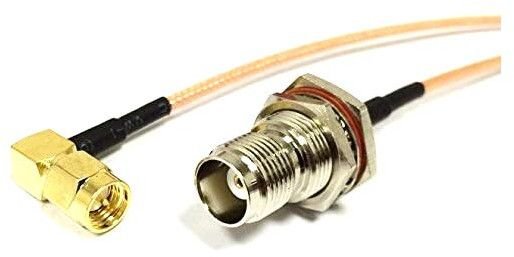

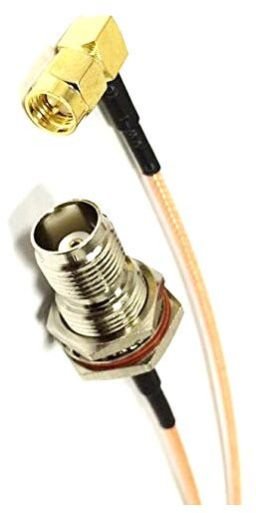

TNC (F) St. B/H Connector With RG316 Cable ( L-1Mtr ) + SMA (M) R/A Connector:
This configuration includes:
-
TNC (F) St. B/H Connector: A female TNC connector with a straight bulkhead (panel mount) configuration. TNC connectors are commonly used in RF applications requiring a threaded coupling mechanism for secure connections.
-
RG316 Cable (L-1Mtr): A 1-meter length of RG316 coaxial cable. RG316 is a type of flexible coaxial cable suitable for high-frequency applications.
-
SMA (M) R/A Connector: A male SMA connector with a right-angle (R/A) orientation. SMA connectors are widely used in RF and microwave applications for their durability and performance.
This assembly is typically used to establish a reliable RF connection over a distance of 1 meter, with the TNC connector providing a secure bulkhead mount and the SMA connector offering a right-angle option for space-constrained installations.
